  • ISCAR 3M F90AX D4.00-8-1.50-20 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

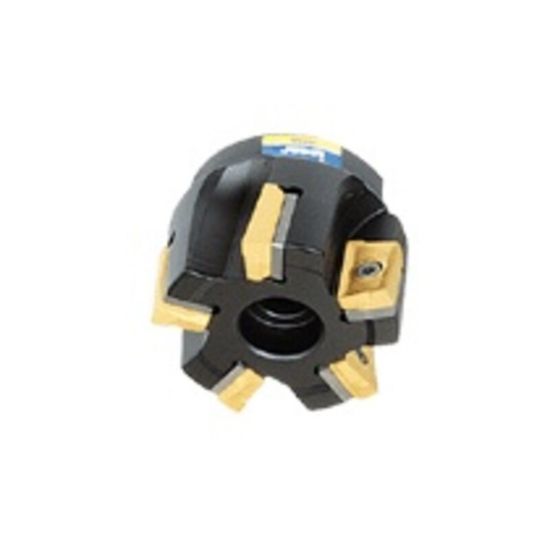

Picture of ISCAR 3M F90AX D4.00-8-1.50-20 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

ISCAR 3M F90AX D4.00-8-1.50-20 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

ANSI: 3M F90AX D4.00-8-1.50-20

ISO: 3M F90AX D4.00-8-1.50-20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3101315
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Type Positive
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Insert Application Roughing
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 20
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Overall Len 2.0000 50.80MM
Depth Of Cut Max 0.7200
Machine Side Connection Size 1.5000 38.10MM
Cutter Dia 4.0000 101.60MM
Cut Dia Min 4.0000 101.60MM
Cut Dia Max 4.0000 101.60MM
Flutes/Inserts 8
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Insert Style AX
Seat/Nest 5601959
Coolant Thru No
Fasteners & Connectors
Insert Screw 7001960
Seat Screw 7001998
