  • ISCAR 3M F90AX D4.00-7-1.50-13 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 7 Flute

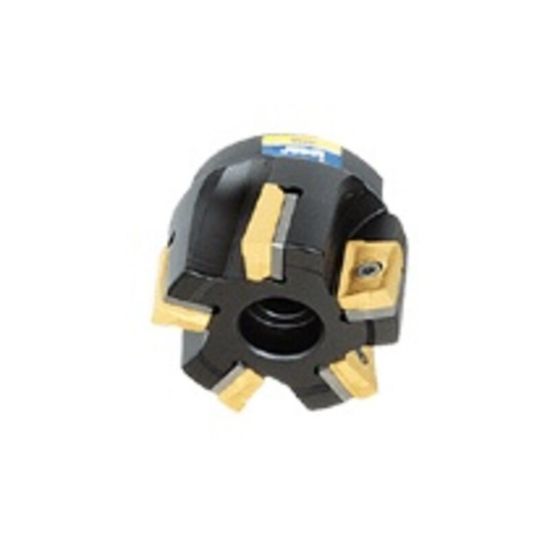

Picture of ISCAR 3M F90AX D4.00-7-1.50-13 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 7 Flute

ISCAR 3M F90AX D4.00-7-1.50-13 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 7 Flute

ANSI: 3M F90AX D4.00-7-1.50-13

ISO: 3M F90AX D4.00-7-1.50-13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3181176
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Side Milling
Insert/Tool Tool
Shipping State Texas
Insert Application Roughing
Made In USA No
Package Size 1
Dimensional Specifications
Cut Dia Min 4.0000 101.60MM
Depth Of Cut Max 0.5000
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Cutter Dia 4.0000 101.60MM
Insert Size Ic 13
Cut Dia Max 4.0000 101.60MM
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 7
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Insert Style AX
Coolant Thru No
Fasteners & Connectors
Insert Screw 7002258
