  • ISCAR 3M F90AX D2.50-7-1.00-13 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.570 OAL 7 Flute

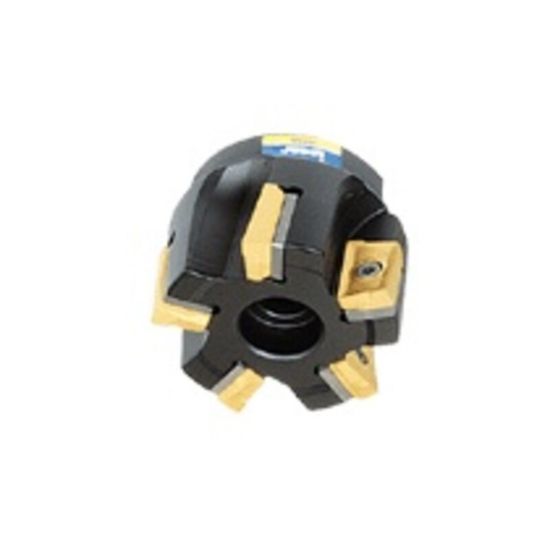

Picture of ISCAR 3M F90AX D2.50-7-1.00-13 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.570 OAL 7 Flute

ISCAR 3M F90AX D2.50-7-1.00-13 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.570 OAL 7 Flute

ANSI: 3M F90AX D2.50-7-1.00-13

ISO: 3M F90AX D2.50-7-1.00-13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3101600
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Side Milling, Slot Milling, Face Milling
Insert/Tool Tool
Insert Type Positive
Package Size 1
Made In USA No
Insert Application Roughing
Dimensional Specifications
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Depth Of Cut Max 0.5000
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Overall Len 1.5700 39.88MM
Insert Size Ic 13
Flutes/Inserts 7
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Insert Style AX
Seat/Nest 5601959
Coolant Thru No
Fasteners & Connectors
Insert Screw 7002024
Seat Screw 7001998
