  • ISCAR 3M F90AX D2.50-5-1.00-20 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.770 OAL 5 Flute

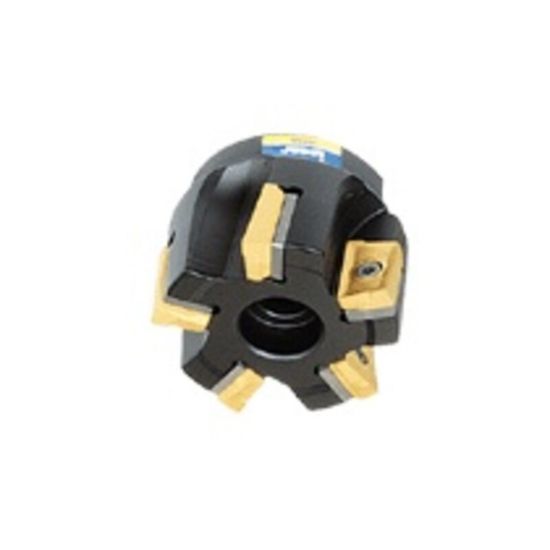

Picture of ISCAR 3M F90AX D2.50-5-1.00-20 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.770 OAL 5 Flute

ISCAR 3M F90AX D2.50-5-1.00-20 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.770 OAL 5 Flute

ANSI: 3M F90AX D2.50-5-1.00-20

ISO: 3M F90AX D2.50-5-1.00-20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3101484
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Made In USA No
Insert Type Positive
Application Slot Milling, Side Milling, Face Milling
Insert/Tool Tool
Package Size 1
Shipping State Texas
Dimensional Specifications
Depth Of Cut Max 0.7900
Cutter Dia 2.5000 63.50MM - 2-1/2
Flutes/Inserts 5
Overall Len 1.7700 44.96MM
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 20
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Insert Style AX
Seat/Nest 5601959
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Fasteners & Connectors
Seat Screw 7001998
Insert Screw 7000219
