  • ISCAR 3M F90AX D2.00-6-.75-13 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 6 Flute

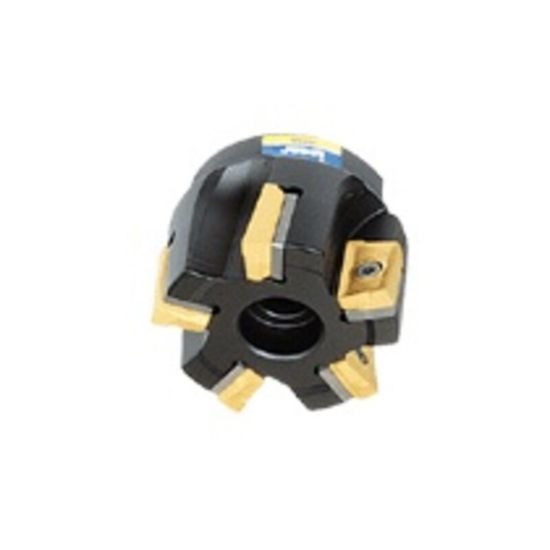

Picture of ISCAR 3M F90AX D2.00-6-.75-13 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 6 Flute

ISCAR 3M F90AX D2.00-6-.75-13 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 6 Flute

ANSI: 3M F90AX D2.00-6-.75-13

ISO: 3M F90AX D2.00-6-.75-13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3101598
Delivery date: 3-5 days
$543.36

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Made In USA No
Application Side Milling, Slot Milling, Face Milling
Insert Type Positive
Insert/Tool Tool
Shipping State Texas
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.9600
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Tool Material Steel
Overall Len 1.5700 39.88MM
Cutter Dia 2.0000 50.80MM
Flutes/Inserts 6
Insert Size Ic 13
Cutting & Machining Properties
Seat/Nest 5601959
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Insert Style AX
Coolant Thru No
Fasteners & Connectors
Seat Screw 7001998
Insert Screw 7000219
