  • ISCAR 3M F90AX D2.00-4-.75-20 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 2.000 OAL 4 Flute

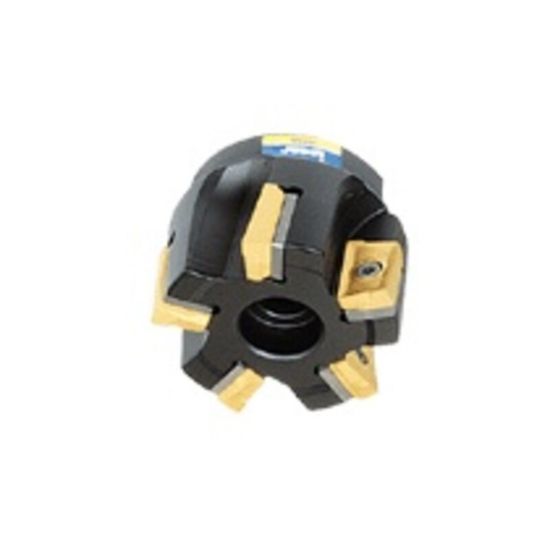

Picture of ISCAR 3M F90AX D2.00-4-.75-20 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 2.000 OAL 4 Flute

ISCAR 3M F90AX D2.00-4-.75-20 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 2.000 OAL 4 Flute

ANSI: 3M F90AX D2.00-4-.75-20

ISO: 3M F90AX D2.00-4-.75-20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3101624
Delivery date: 3-5 days
$568.32

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Slot Milling, Side Milling
Insert Application Roughing
Made In USA No
Shipping State Texas
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Flutes/Inserts 4
Cutter Dia 2.0000 50.80MM
Insert Size Ic 20
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.7900
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Insert Style AX
Coolant Thru No
Fasteners & Connectors
Insert Screw 7002024
