  • ISCAR 3M F90AX D10.0-14-2.50-20 Milling Cutter 90.0° 10.00 Diameter Face Mill 2.500 2.500 OAL 14 Flute

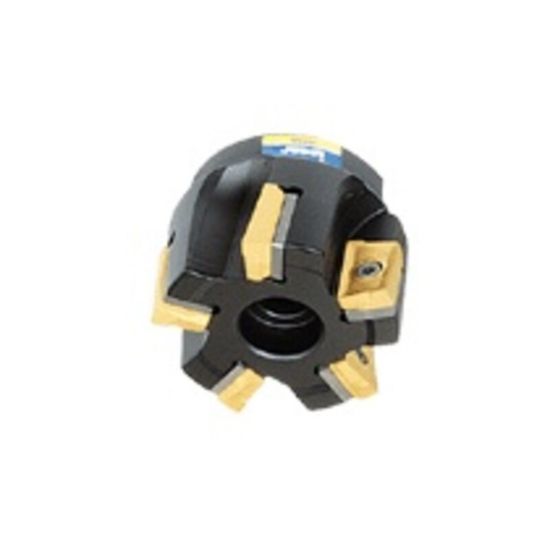

Picture of ISCAR 3M F90AX D10.0-14-2.50-20 Milling Cutter 90.0° 10.00 Diameter Face Mill 2.500 2.500 OAL 14 Flute

ISCAR 3M F90AX D10.0-14-2.50-20 Milling Cutter 90.0° 10.00 Diameter Face Mill 2.500 2.500 OAL 14 Flute

ANSI: 3M F90AX D10.0-14-2.50-20

ISO: 3M F90AX D10.0-14-2.50-20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3101313
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Made In USA No
Application Side Milling, Slot Milling, Face Milling
Insert Type Positive
Shipping State Texas
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 14
Insert Size Ic 20
Cut Dia Min 10.0000 254.00MM
Tool Material Steel
Cutter Dia 10.0000 254.00MM
Overall Len 2.5000 63.50MM
Cut Dia Max 10.0000 254.00MM
Depth Of Cut Max 0.7900
Machine Side Connection Size 2.5000 63.50MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Insert Style AX
Coolant Thru No
Seat/Nest 5601959
Fasteners & Connectors
Seat Screw 7001998
Insert Screw 7000219
