  • ISCAR 3M F90AX D063-7-25.4-13 Milling Cutter 90.0° 2.480 Diameter Face Mill 1.000 1.968 OAL 7 Flute

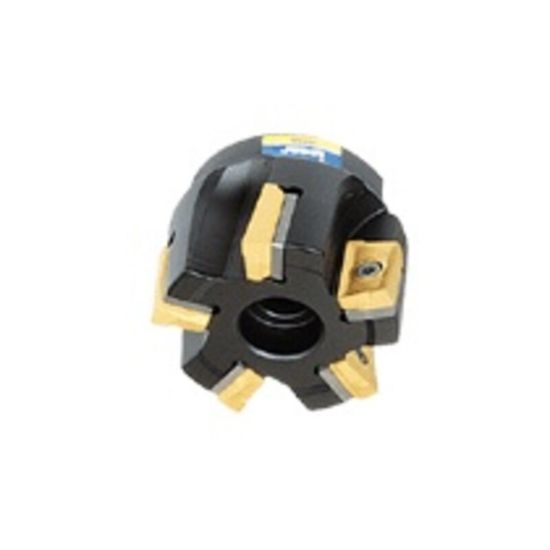

Picture of ISCAR 3M F90AX D063-7-25.4-13 Milling Cutter 90.0° 2.480 Diameter Face Mill 1.000 1.968 OAL 7 Flute

ISCAR 3M F90AX D063-7-25.4-13 Milling Cutter 90.0° 2.480 Diameter Face Mill 1.000 1.968 OAL 7 Flute

ANSI: 3M F90AX D063-7-25.4-13

ISO: 3M F90AX D063-7-25.4-13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3101613
Delivery date: 3-5 days
$654.72

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Made In USA No
Application Side Milling, Slot Milling, Face Milling
Insert Application Roughing
Insert Type Positive
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 2.4800 62.99MM
Cut Dia Max 2.4800 62.99MM
Machine Side Connection Size 1.0000 25.40MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 13
Depth Of Cut Max 0.4920
Cutter Dia 2.4800 62.99MM
Flutes/Inserts 7
Tool Material Steel
Overall Len 1.9680 49.99MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Coolant Thru No
Insert Style AX
Fasteners & Connectors
Insert Screw 7002024
