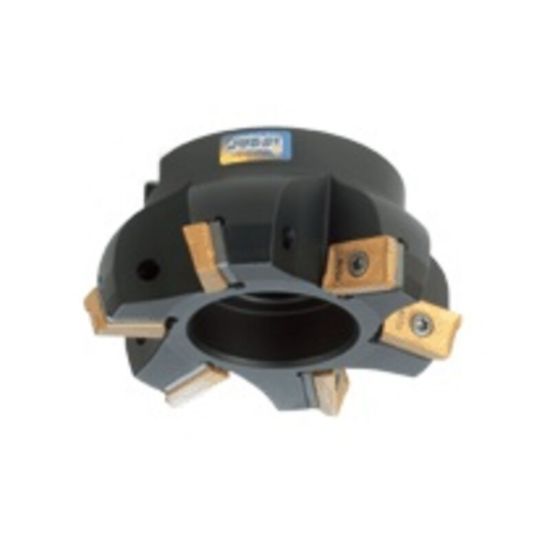

Picture of ISCAR 3M F75AX D3.0-6-1.0-13 Milling Cutter 75.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 6 Flute

ISCAR 3M F75AX D3.0-6-1.0-13 Milling Cutter 75.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 6 Flute

ANSI: 3M F75AX D3.0-6-1.0-13

ISO: 3M F75AX D3.0-6-1.0-13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102697
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling
Package Size 1
Shipping State Texas
Insert Application Roughing
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 13
Flutes/Inserts 6
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Max 3.0000 76.20MM
Depth Of Cut Max 0.1530
Cutter Dia 3.0000 76.20MM
Overall Len 1.7500 44.45MM
Cutting & Machining Properties
Insert Style AX
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7002024
