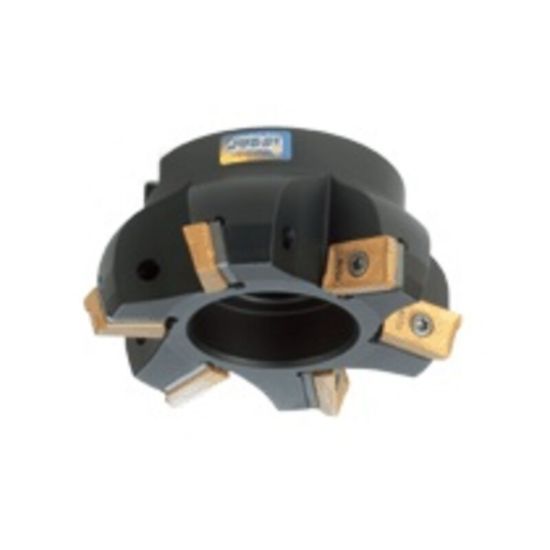

Picture of ISCAR 3M F75AX D2.5-5-1.0-13 Milling Cutter 75.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 5 Flute

ISCAR 3M F75AX D2.5-5-1.0-13 Milling Cutter 75.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 5 Flute

ANSI: 3M F75AX D2.5-5-1.0-13

ISO: 3M F75AX D2.5-5-1.0-13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102696
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Texas
Insert Type Positive
Application Face Milling
Insert Application Roughing
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 13
Depth Of Cut Max 0.1530
Overall Len 1.7500 44.45MM
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Flutes/Inserts 5
Cutting & Machining Properties
Cool Sply Type External
Insert Style AX
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw 7002024
