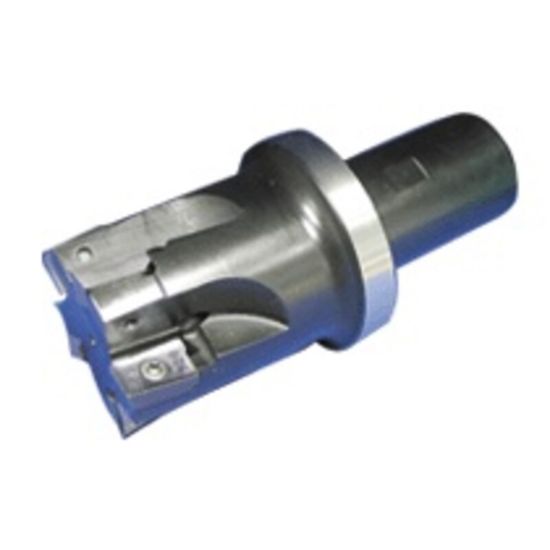

Picture of ISCAR 3M E90AX D1.00-3-CF4-13 Milling Cutter 90.0° 1.000 Diameter Clickfit 1.574 3.540 OAL 3 Flute

ISCAR 3M E90AX D1.00-3-CF4-13 Milling Cutter 90.0° 1.000 Diameter Clickfit 1.574 3.540 OAL 3 Flute

ANSI: 3M E90AX D1.00-3-CF4-13

ISO: 3M E90AX D1.00-3-CF4-13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3101644
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Package Size 1
Insert/Tool Tool
Insert Type Positive
Application Ramp Milling, Slot Milling, Pocket Milling, Side Milling
Insert Application Roughing
Made In USA No
Dimensional Specifications
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Type CLICK FIT
Machine Side Connection Size 1.5748 40.00MM
Insert Size Ic 13
Overall Len 3.5400 89.92MM
Flutes/Inserts 3
Depth Of Cut Max 0.5000
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Shank/Pilot Dia 1.5748 40.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AX
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7002441
