  • ISCAR 3M AXK D1.50-19-4-W125-13 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Weldon 1.250 4.700 OAL 16 Flute

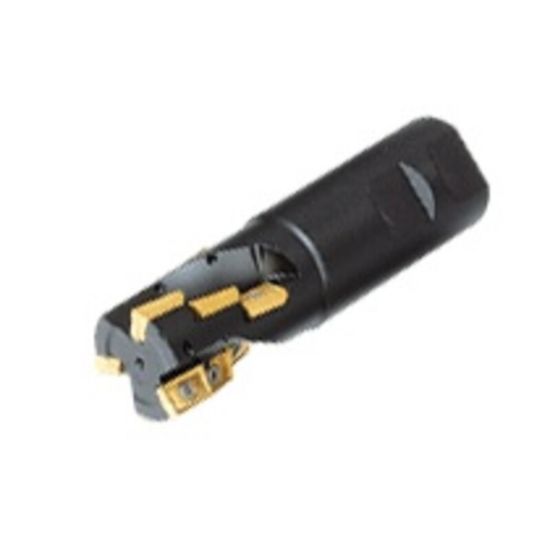

Picture of ISCAR 3M AXK D1.50-19-4-W125-13 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Weldon 1.250 4.700 OAL 16 Flute

ISCAR 3M AXK D1.50-19-4-W125-13 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Weldon 1.250 4.700 OAL 16 Flute

ANSI: 3M AXK D1.50-19-4-W125-13

ISO: 3M AXK D1.50-19-4-W125-13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3101574
Delivery date: 3-5 days
$1,468.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Long Edge Milling
Insert Type Positive
Insert Application Roughing
Package Size 1
Insert/Tool Tool
Made In USA No
Shipping State Texas
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 4.7000 119.38MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 13
Cut Dia Min 1.5000 38.10MM - 1-1/2
Flutes/Inserts 16
Tool Material Steel
Depth Of Cut Max 1.4400
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Insert Style AX
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7002024
