  • ISCAR 3M AXK D1.25-14-3-W125-13 Milling Cutter 90.0°, Corn Cob 1.250 Diameter Weldon 1.250 4.300 OAL 9 Flute

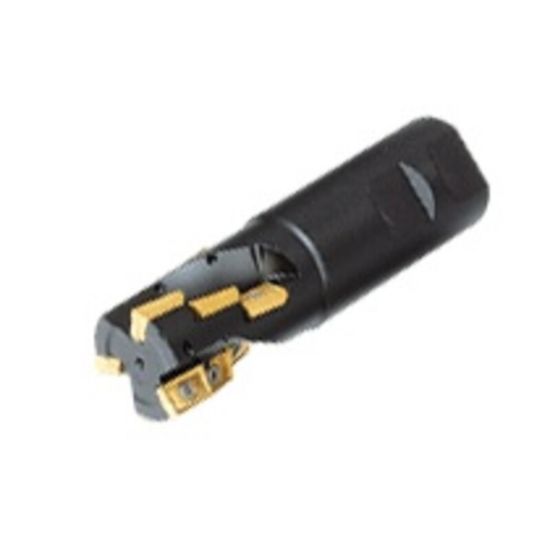

Picture of ISCAR 3M AXK D1.25-14-3-W125-13 Milling Cutter 90.0°, Corn Cob 1.250 Diameter Weldon 1.250 4.300 OAL 9 Flute

ISCAR 3M AXK D1.25-14-3-W125-13 Milling Cutter 90.0°, Corn Cob 1.250 Diameter Weldon 1.250 4.300 OAL 9 Flute

ANSI: 3M AXK D1.25-14-3-W125-13

ISO: 3M AXK D1.25-14-3-W125-13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3101573
Delivery date: 3-5 days
$1,094.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Long Edge Milling, Side Milling
Package Size 1
Insert/Tool Tool
Shipping State Texas
Insert Type Positive
Insert Application Roughing
Made In USA No
Dimensional Specifications
Insert Size Ic 13
Depth Of Cut Max 1.9000
Cut Dia Min 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Overall Len 4.3000 109.22MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 9
Cutting & Machining Properties
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Coolant Thru No
Fasteners & Connectors
Insert Screw 7002024
