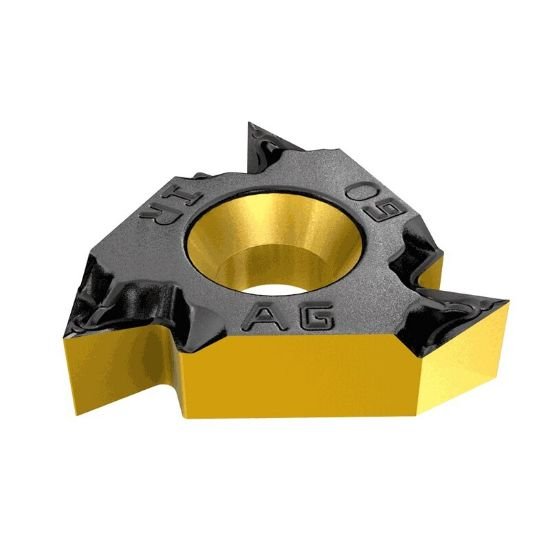

Picture of Iscar 16IRM G 60 IC808 Insert Iso Thread Int.Threading Insert Partial Profile 8.00TPI - 14.00TPI 60.0° TiAlN + AlTiN + TiN

Iscar 16IRM G 60 IC808 Insert Iso Thread Int.Threading Insert Partial Profile 8.00TPI - 14.00TPI 60.0° TiAlN + AlTiN + TiN

Part Number: ISC5921245 ISO: 16IRM G 60 IC808 ANSI:16IRM G 60 IC808
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1025398
Vendor: Sussex Tool and Supply
$15.61
This product has a minimum quantity of 10

Description

ISCAR 5921245 Triangle Insert Positive TiAlN + AlTiN + TiN A tough, submicron substrate with excellent chipping resistance, combined with a "SUMO TEC" PVD coating. Provides high wear resistance. Recommended for a very wide range of materials.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style ISO
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Hand Right Hand
Thread Type 60.0°
Inter/Extern Internal
Full Or Partial Profile Partial Profile
Dimensions & Sizing
Insert Size Ic 16
Thread Pitch 8.00TPI - 14.00TPI
Threed Teeth 1
Geometry & Angles
Corner Radius 0.0040 0.10MM
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + AlTiN + TiN
Grade IC808
Compatibility & Fit
Insert Fits ISO Thread
