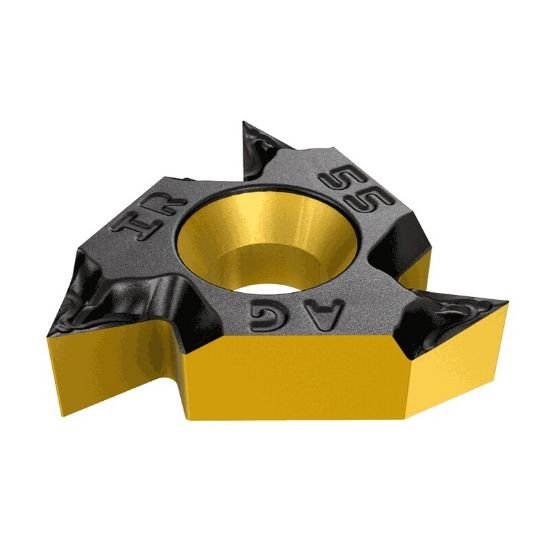

Picture of Iscar 16IRM G 55 IC250 Insert Iso Thread Int.Threading Insert Partial Profile 8.00TPI - 14.00TPI 55.0° TiCN + TiN

Iscar 16IRM G 55 IC250 Insert Iso Thread Int.Threading Insert Partial Profile 8.00TPI - 14.00TPI 55.0° TiCN + TiN

Part Number: ISC5920087 ISO: 16IRM G 55 IC250 ANSI:16IRM G 55 IC250
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1025333
Vendor: Sussex Tool and Supply
$13.63
This product has a minimum quantity of 10

Description

ISCAR 5920087 Triangle Insert Positive TiCN + TiN For high loads and medium to high cutting speed.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style ISO
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Hand Right Hand
Thread Type 55.0°
Inter/Extern Internal
Full Or Partial Profile Partial Profile
Dimensions & Sizing
Insert Size Ic 16
Thread Pitch 8.00TPI - 14.00TPI
Threed Teeth 1
Geometry & Angles
Corner Radius 0.0080 0.20MM
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Materials & Finish
Cutting Edge Mat Carbide
Coating TiCN + TiN
Grade IC250
Compatibility & Fit
Insert Fits ISO Thread
