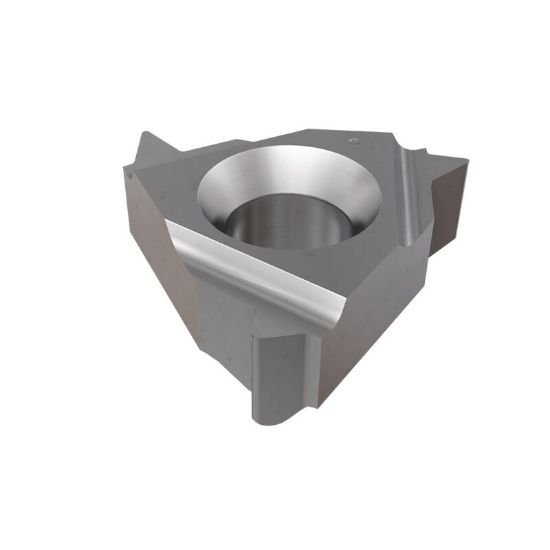

Picture of Iscar 16IR 12 UN IC08 Insert Iso Thread Int.Threading Insert Full Profile 12.00TPI UN

Iscar 16IR 12 UN IC08 Insert Iso Thread Int.Threading Insert Full Profile 12.00TPI UN

Part Number: ISC5902548 ISO: 16IR 12 UN IC08 ANSI:16IR 12 UN IC08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1025050
Vendor: Sussex Tool and Supply
$11.19
This product has a minimum quantity of 10
ISCAR 5902548 Triangle Insert Positive Uncoated An uncoated, fine grain carbide grade. Used for stainless steel and high temperature alloys at low to medium cutting speeds.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Insert/Tool INSERT
Cut Type General Purpose
Corner Radius 0.0050 0.13MM
Insert Style ISO
Insert Shape/Cutter Pocket Shape Triangle
Grade IC08
Insert Type Positive
Insert Size Ic 16
Insert Fits ISO Thread
Hand Right Hand
Thread Pitch 12.00TPI
Thread Type UN
Inter/Extern Internal
Full Or Partial Profile Full Profile
Threed Teeth 1
