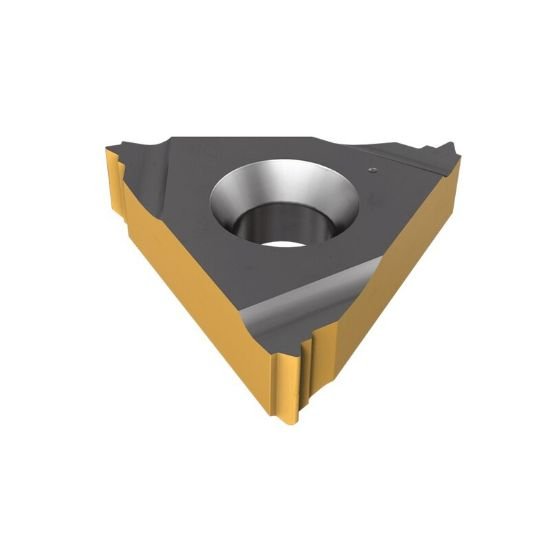

Picture of Iscar 16ERM 3.00 ISO IC508 Insert Iso Thread Ext.Threading Insert Full Profile 3.00mm Metric TiCN + TiN

Iscar 16ERM 3.00 ISO IC508 Insert Iso Thread Ext.Threading Insert Full Profile 3.00mm Metric TiCN + TiN

Part Number: ISC5921194 ISO: 16ERM 3.00 ISO IC508 ANSI:16ERM 3.00 ISO IC508
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1025362
Vendor: Sussex Tool and Supply
$14.29
This product has a minimum quantity of 10

Description

ISCAR 5921194 Triangle Insert Positive TiCN + TiN A broad-spectrum grade with a tough-submicron fine grain substrate and PVD coating. Designed for machining main types of engineering materials at various cutting speeds. Features excellent notch wear and built-up edge resistance. Suitable for interrupted cutting and machining under unfavorable conditions.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style ISO
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Hand Right Hand
Thread Type METRIC
Inter/Extern External
Full Or Partial Profile Full Profile
Dimensions & Sizing
Insert Size Ic 16
Thread Pitch 3.00MM
Threed Teeth 1
Geometry & Angles
Corner Radius 0.0150 0.38MM
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Materials & Finish
Cutting Edge Mat Carbide
Coating TiCN + TiN
Grade IC508
Compatibility & Fit
Insert Fits ISO Thread
