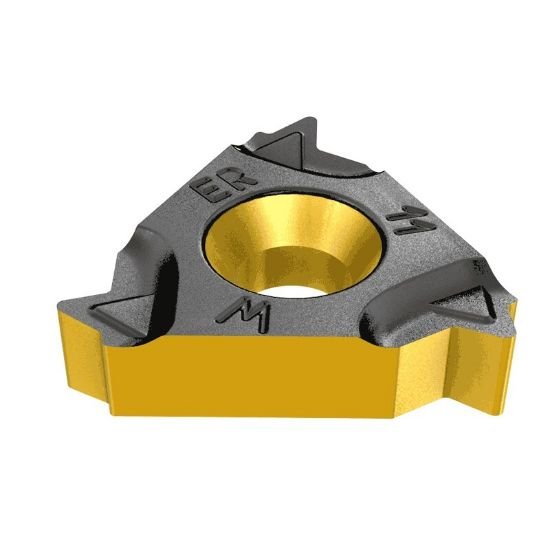

Picture of Iscar 16ERM 19 W IC1007 Insert Iso Thread Ext.Threading Insert Full Profile 19.00TPI Whitworth BSW/BSF/BSP TiAlN

Iscar 16ERM 19 W IC1007 Insert Iso Thread Ext.Threading Insert Full Profile 19.00TPI Whitworth BSW/BSF/BSP TiAlN

Part Number: ISC5903447 ISO: 16ERM 19 W IC1007 ANSI:16ERM 19 W IC1007
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1025253
Vendor: Sussex Tool and Supply
$14.29
This product has a minimum quantity of 10

Description

ISCAR 5903447 Triangle Insert Positive TiAlN A tough submicron substrate, PVD coated grade. Suitable for threading heat resistant alloys,austenitic stainless steel and hard steel at low to medium cutting speeds.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style ISO
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Hand Right Hand
Thread Type Whitworth BSW/BSF/BSP
Inter/Extern External
Full Or Partial Profile Full Profile
Dimensions & Sizing
Insert Size Ic 16
Thread Pitch 19.00TPI
Threed Teeth 1
Geometry & Angles
Corner Radius 0.0060 0.15MM
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN
Grade IC1007
Compatibility & Fit
Insert Fits ISO Thread
