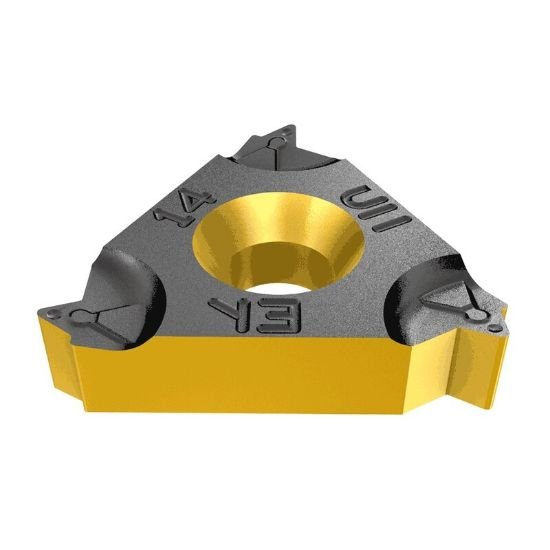

Picture of Iscar 16EL 14 UN IC508 Insert Iso Thread Ext.Threading Insert Full Profile 14.00TPI UN TiCN + TiN

Iscar 16EL 14 UN IC508 Insert Iso Thread Ext.Threading Insert Full Profile 14.00TPI UN TiCN + TiN

Part Number: ISC5901546 ISO: 16EL 14 UN IC508 ANSI:16EL 14 UN IC508

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1024557
Vendor: Sussex Tool and Supply
$14.78
This product has a minimum quantity of 10
ISCAR 5901546 Triangle Insert Positive TiCN + TiN A broad-spectrum grade with a tough-submicron fine grain substrate and PVD coating. Designed for machining main types of engineering materials at various cutting speeds. Features excellent notch wear and built-up edge resistance. Suitable for interrupted cutting and machining under unfavorable conditions.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Coating TiCN + TiN
Insert/Tool INSERT
Cut Type General Purpose
Corner Radius 0.0090 0.23MM
Insert Style ISO
Insert Shape/Cutter Pocket Shape Triangle
Grade IC508
Insert Type Positive
Insert Size Ic 16
Insert Fits ISO Thread
Hand Left Hand
Thread Pitch 14.00TPI
Thread Type UN
Inter/Extern External
Full Or Partial Profile Full Profile
Threed Teeth 1
