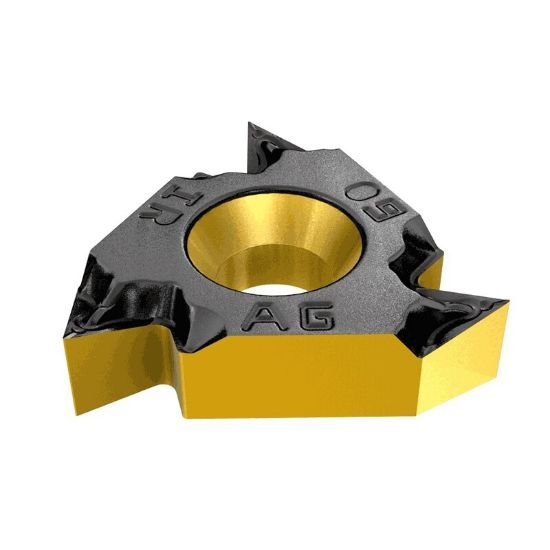

Picture of Iscar 11IR A 60 IC08 Threading Insert 60.0° 16.00TPI - 48.00TPI 1.59mm - 0.53mm

Iscar 11IR A 60 IC08 Threading Insert 60.0° 16.00TPI - 48.00TPI 1.59mm - 0.53mm

Part Number: ISC3322235 ISO: 11IR A 60 IC08 ANSI:11IR A 60 IC08
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1024339
Vendor: Sussex Tool and Supply
$12.97
This product has a minimum quantity of 10

Description

ISCAR 3322235 Triangle Insert Positive Uncoated An uncoated, fine grain carbide grade. Used for stainless steel and high temperature alloys at low to medium cutting speeds.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style ISO
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Hand Right Hand
Thread Type 60.0°
Inter/Extern Internal
Full Or Partial Profile Partial Profile
Dimensions & Sizing
Insert Size Ic 11
Thread Pitch 16.00TPI - 48.00TPI 1.59MM - 0.53MM
Threed Teeth 1
Geometry & Angles
Corner Radius 0.0020 0.05MM
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Materials & Finish
Cutting Edge Mat Carbide
Grade IC08
Compatibility & Fit
Insert Fits ISO Thread
