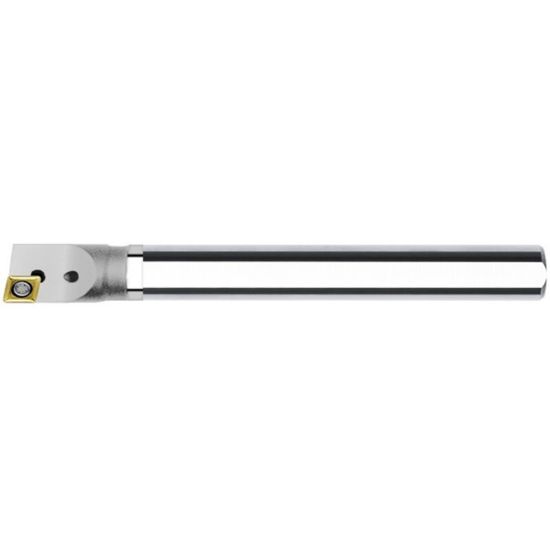

Picture of INTERNAL Tool D07-87-9-S Turning Boring Bar 80.0° Insert Steel 0.750 9.000 Oal 0.875 Min Bore

INTERNAL Tool D07-87-9-S Turning Boring Bar 80.0° Insert Steel 0.750 9.000 Oal 0.875 Min Bore

ANSI: D07-87-9-S

ISO: D07-87-9-S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INTERNAL TOOL
SKU: INT16-1876
Delivery date: 3-5 days
$117.59

Details

D07-87-9-S 9" STEEL SHANK INSERT BORING TOOL

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Package Size 1
Made In USA Yes
Insert Type Positive
Application Int.Turning
Insert Application General Purpose
Shipping State California
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 9.0000 228.60MM
Min Bore 0.8750
Lead Angle 95°
Insert Size Ic 09 "32"
Machine Side Connection Type Boring Bar
Cutting & Machining Properties
Insert Style CC
Insert Shape/Cutter Pocket Shape 80.0°
Inter/Extern Internal
