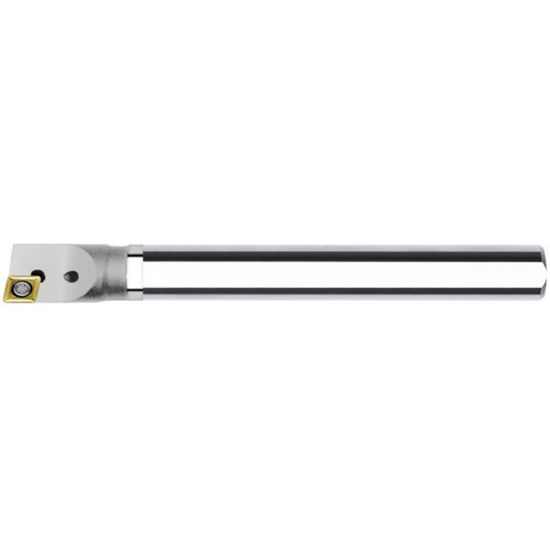

Picture of INTERNAL Tool D07-75B-9-S Turning Boring Bar 80.0° Insert Steel 0.625 9.000 Oal 0.75 Min Bore

INTERNAL Tool D07-75B-9-S Turning Boring Bar 80.0° Insert Steel 0.625 9.000 Oal 0.75 Min Bore

ANSI: D07-75B-9-S

ISO: D07-75B-9-S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INTERNAL TOOL
SKU: INT16-1904
Delivery date: 3-5 days
$121.89

Details

D07-75B-9-S 9" STEEL SHANK INSERT BORING TOOL

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State California
Made In USA Yes
Application Int.Turning
Package Size 1
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 06 "21"
Machine Side Connection Type Boring Bar
Min Bore 0.7500
Lead Angle 95°
Overall Len 9.0000 228.60MM
Machine Side Connection Size 0.6250 15.88MM
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Inter/Extern Internal
Insert Style CC
