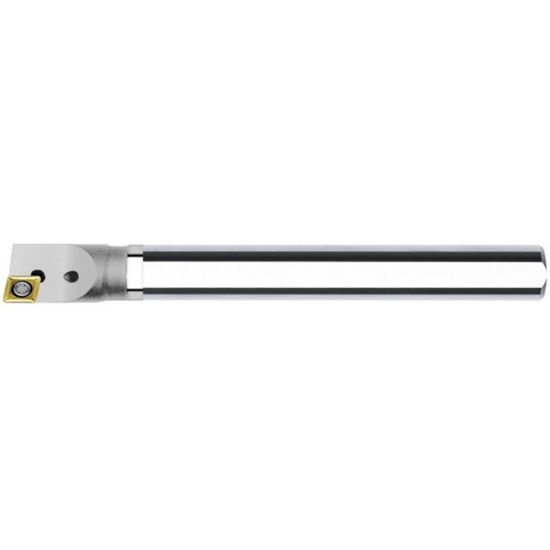

Picture of INTERNAL Tool D07-68B-6-S Turning Boring Bar 80.0° Insert Steel 0.625 6.000 Oal 0.687 Min Bore

INTERNAL Tool D07-68B-6-S Turning Boring Bar 80.0° Insert Steel 0.625 6.000 Oal 0.687 Min Bore

ANSI: D07-68B-6-S

ISO: D07-68B-6-S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INTERNAL TOOL
SKU: INT16-1881
Delivery date: 3-5 days
$106.12

Details

D07-68B-6-S 6" STEEL SHANK INSERT BORING TOOL

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Int.Turning
Made In USA Yes
Insert Application General Purpose
Shipping State California
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Lead Angle 95°
Machine Side Connection Size 0.6250 15.88MM
Overall Len 6.0000 152.40MM
Insert Size Ic 06 "21"
Machine Side Connection Type Boring Bar
Min Bore 0.6870
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CC
