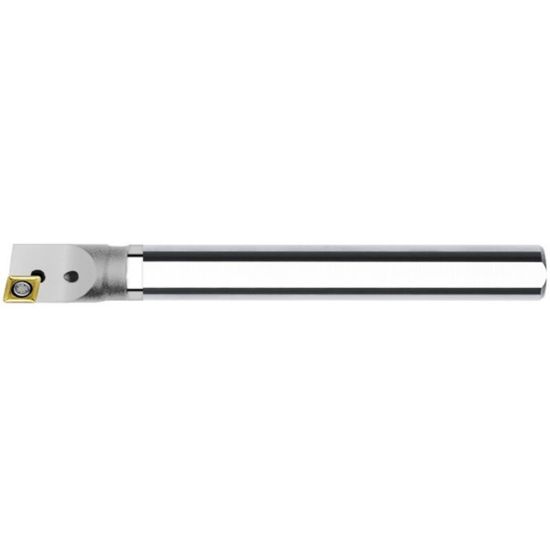

Picture of INTERNAL Tool D07-68-6-CO Turning Boring Bar 80.0° Insert Carbide 0.625 6.000 Oal 0.687 Min Bore

INTERNAL Tool D07-68-6-CO Turning Boring Bar 80.0° Insert Carbide 0.625 6.000 Oal 0.687 Min Bore

ANSI: D07-68-6-CO

ISO: D07-68-6-CO

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INTERNAL TOOL
SKU: INT16-1801
Delivery date: 3-5 days
$395.78

Details

D07-68-6-CO 6" CARBIDE COOLANT HOLE INSERT BORING TOOL

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Positive
Application Int.Turning
Insert/Tool Tool
Insert Application General Purpose
Shipping State California
Made In USA Yes
Dimensional Specifications
Tool Material Carbide
Min Bore 0.6870
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Lead Angle 95°
Machine Side Connection Size 0.6250 15.88MM
Insert Size Ic 06 "21"
Machine Side Connection Type Boring Bar
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CC
Inter/Extern Internal
