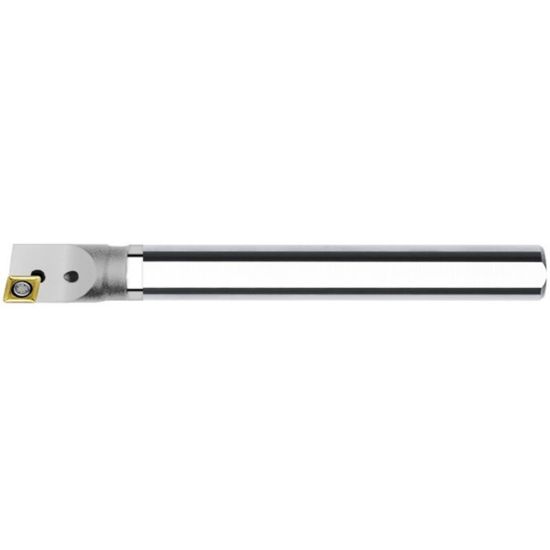

Picture of INTERNAL Tool D07-62B-3-S Turning Boring Bar 80.0° Insert Steel 0.500 3.000 Oal 0.625 Min Bore

INTERNAL Tool D07-62B-3-S Turning Boring Bar 80.0° Insert Steel 0.500 3.000 Oal 0.625 Min Bore

ANSI: D07-62B-3-S

ISO: D07-62B-3-S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INTERNAL TOOL
SKU: INT16-1859
Delivery date: 3-5 days
$89.63

Details

D07-62B-3-S 3" STEEL SHANK INSERT BORING TOOL

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Made In USA Yes
Insert Type Positive
Application Int.Turning
Insert Application General Purpose
Shipping State California
Dimensional Specifications
Min Bore 0.6250
Overall Len 3.0000 76.20MM
Tool Material Steel
Lead Angle 95°
Machine Side Connection Size 0.5000 12.70MM
Insert Size Ic 06 "21"
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Insert Style CC
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
