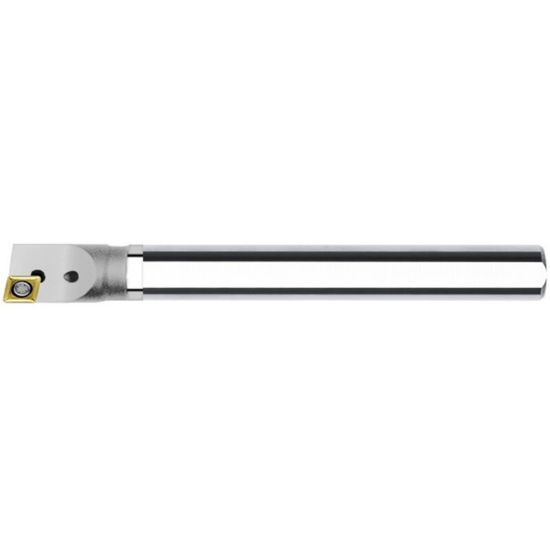

Picture of INTERNAL Tool D07-62-6-S Turning Boring Bar 80.0° Insert Steel 0.500 6.000 Oal 0.625 Min Bore

INTERNAL Tool D07-62-6-S Turning Boring Bar 80.0° Insert Steel 0.500 6.000 Oal 0.625 Min Bore

ANSI: D07-62-6-S

ISO: D07-62-6-S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INTERNAL TOOL
SKU: INT16-1759
Delivery date: 3-5 days
$96.44

Details

D07-62-6-S 6" STEEL SHANK INSERT BORING TOOL

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Turning
Insert/Tool Tool
Insert Application General Purpose
Shipping State California
Insert Type Positive
Package Size 1
Made In USA Yes
Dimensional Specifications
Min Bore 0.6250
Lead Angle 95°
Tool Material Steel
Insert Size Ic 06 "21"
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Machine Side Connection Size 0.5000 12.70MM
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Inter/Extern Internal
Insert Style CC
Hand R/L Right
