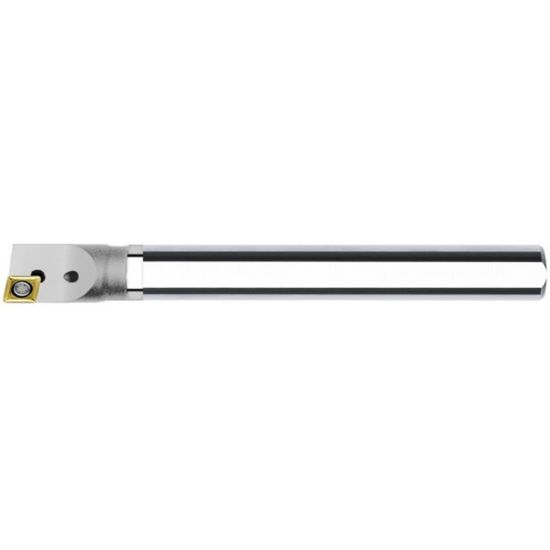

Picture of INTERNAL Tool D07-62-6-C Turning Boring Bar 80.0° Insert Carbide 0.500 6.000 Oal 0.625 Min Bore

INTERNAL Tool D07-62-6-C Turning Boring Bar 80.0° Insert Carbide 0.500 6.000 Oal 0.625 Min Bore

ANSI: D07-62-6-C

ISO: D07-62-6-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INTERNAL TOOL
SKU: INT16-1762
Delivery date: 3-5 days
$193.23

Details

D07-62-6-C 6" CARBIDE SHANK INSERT BORING TOOL

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Positive
Application Int.Turning
Package Size 1
Made In USA Yes
Insert Application General Purpose
Shipping State California
Dimensional Specifications
Lead Angle 95°
Machine Side Connection Size 0.5000 12.70MM
Tool Material Carbide
Min Bore 0.6250
Overall Len 6.0000 152.40MM
Insert Size Ic 06 "21"
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Insert Style CC
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Inter/Extern Internal
