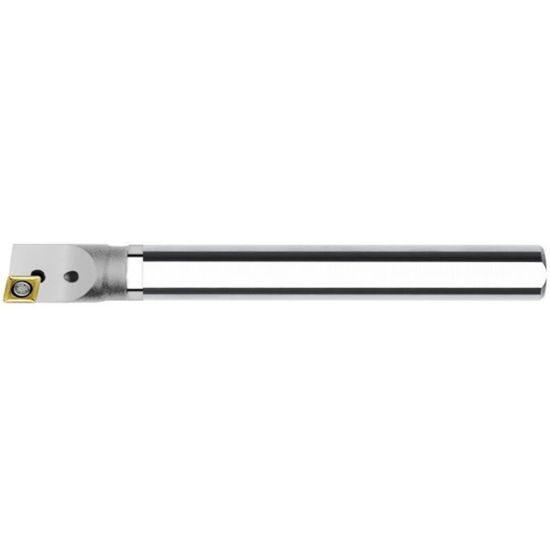

Picture of INTERNAL Tool D07-62-12-CO Turning Boring Bar 80.0° Insert Carbide 0.500 12.00 Oal 0.625 Min Bore

INTERNAL Tool D07-62-12-CO Turning Boring Bar 80.0° Insert Carbide 0.500 12.00 Oal 0.625 Min Bore

ANSI: D07-62-12-CO

ISO: D07-62-12-CO

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INTERNAL TOOL
SKU: INT16-1783
Delivery date: 3-5 days
$528.32

Details

D07-62-12-CO 12" CARBIDE COOLANT HOLE INSERT BORING TOOL

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Shipping State California
Package Size 1
Insert Type Positive
Made In USA Yes
Application Int.Turning
Dimensional Specifications
Insert Size Ic 06 "21"
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Tool Material Carbide
Machine Side Connection Size 0.5000 12.70MM
Lead Angle 95°
Overall Len 12.0000 304.80MM
Min Bore 0.6250
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CC
Hand R/L Right
Inter/Extern Internal
Only registered users can write reviews
