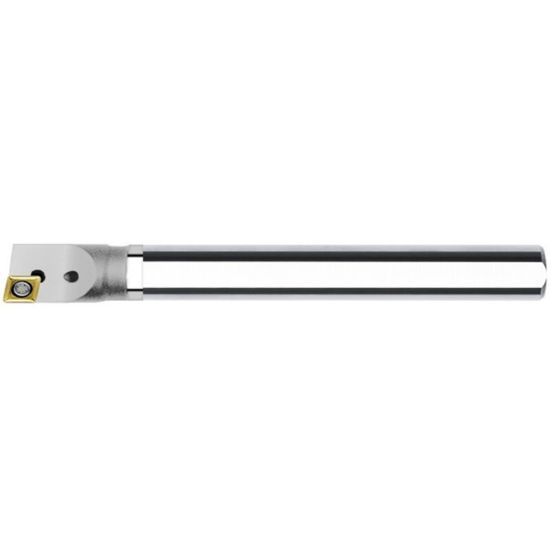

Picture of INTERNAL Tool D07-37-6-C Turning Boring Bar 80.0° Insert Carbide 0.312 6.000 Oal 0.375 Min Bore

INTERNAL Tool D07-37-6-C Turning Boring Bar 80.0° Insert Carbide 0.312 6.000 Oal 0.375 Min Bore

ANSI: D07-37-6-C

ISO: D07-37-6-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INTERNAL TOOL
SKU: INT16-1672
Delivery date: 3-5 days
$126.47

Details

D07-37-6-C 6" CARBIDE SHANK INSERT BORING TOOL

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Int.Turning
Insert Type Positive
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Shipping State California
Dimensional Specifications
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 6.0000 152.40MM
Lead Angle 95°
Min Bore 0.3750
Insert Size Ic 06 "21"
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3125 7.94MM
Tool Material Carbide
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Inter/Extern Internal
Insert Style CC
