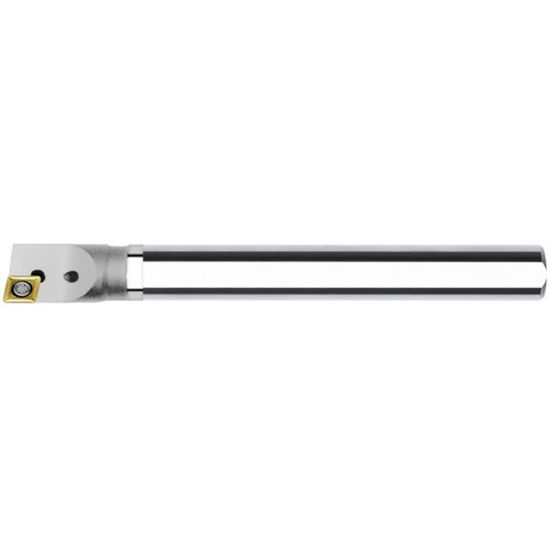

Picture of INTERNAL Tool D07-100-12-S Turning Boring Bar 80.0° Insert Steel 0.750 12.00 Oal 1 Min Bore

INTERNAL Tool D07-100-12-S Turning Boring Bar 80.0° Insert Steel 0.750 12.00 Oal 1 Min Bore

ANSI: D07-100-12-S

ISO: D07-100-12-S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INTERNAL TOOL
SKU: INT16-1921
Delivery date: 3-5 days
$125.48

Details

D07-100-12-S 12" STEEL SHANK INSERT BORING TOOL

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Made In USA Yes
Shipping State California
Package Size 1
Insert Application General Purpose
Insert Type Positive
Application Int.Turning
Dimensional Specifications
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 09 "32"
Tool Material Steel
Min Bore 1.0000
Lead Angle 95°
Overall Len 12.0000 304.80MM
Cutting & Machining Properties
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CC
