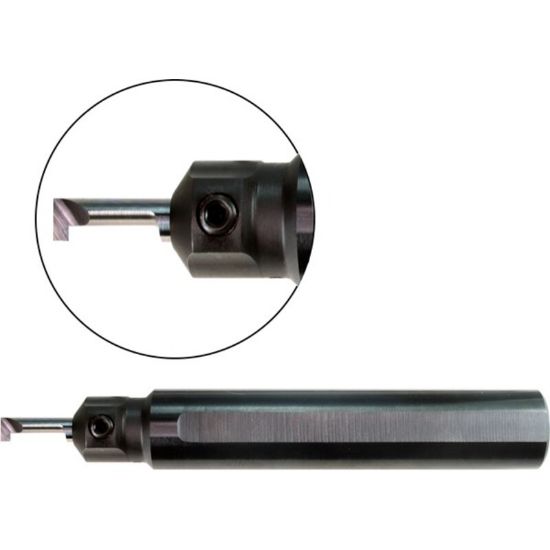

INTERNAL Tool 42-7070-C QCGV-032-400 ALTIN Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INTERNAL TOOL
SKU: INT42-7070-C
Delivery date: 3-5 days
$29.99

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Insert Application Finishing, Semi Finishing
Package Size 1
Application Swiss, Int.Solid Grooving
Shipping State California
Insert/Tool Tool
Dimensional Specifications
Cutting Width 0.0320 0.81MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Min Bore 0.1850
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.1875 4.76MM
Depth Of Cut Max 0.4000
Tool Material Carbide
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
