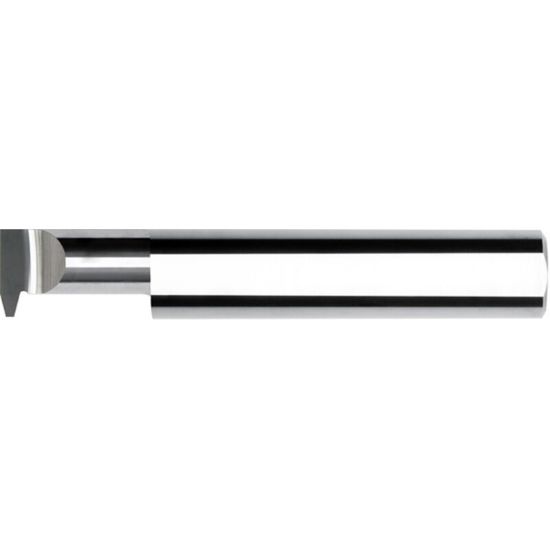

INTERNAL Tool 34-1505-C VSA-1500-8 .490 DIA X 8 Pitch Stub ACME Thread Tool

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INTERNAL TOOL
SKU: INT34-1505-C
Delivery date: 3-5 days
$81.15

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing
Full Or Partial Profile Full Profile
Made In USA Yes
Application Swiss, Int.Solid Threading
Shipping State California
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Overall Len 3.0000 76.20MM
Machine Side Connection Type Boring Bar
Cutting Width 0.0480 1.22MM
Thread Pitch 8.00TPI
Min Bore 0.4900
Machine Side Connection Size 0.5000 12.70MM
Thread Type ST ACME
Depth Of Cut Max 1.5000
Tool Material Carbide
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
