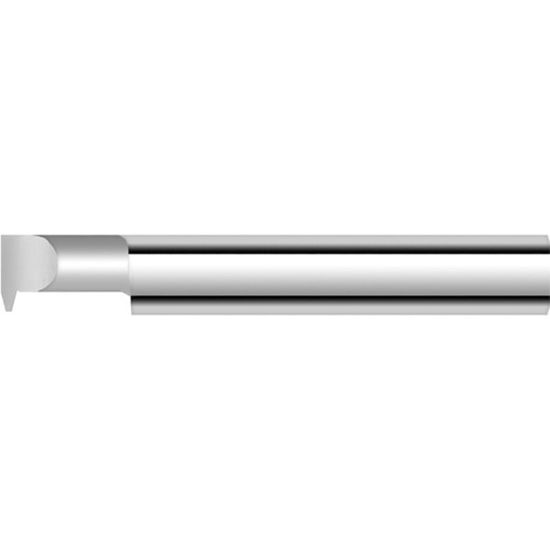

INTERNAL Tool 32-1250 VIA-750-12 .360 DIA X 12 Pitch ACME Thread Tool

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INTERNAL TOOL
SKU: INT32-1250
Delivery date: 3-5 days
$51.27

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing
Application Int.Solid Threading, Swiss
Shipping State California
Full Or Partial Profile Full Profile
Made In USA Yes
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Thread Pitch 12.00TPI
Overall Len 2.5000 63.50MM
Min Bore 0.3600
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3750 9.53MM
Thread Type ACME
Depth Of Cut Max 0.7500
Tool Material Carbide
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutting Width 0.0280 0.71MM
Cutting & Machining Properties
Inter/Extern Internal
Cutting Edge Mat Carbide
