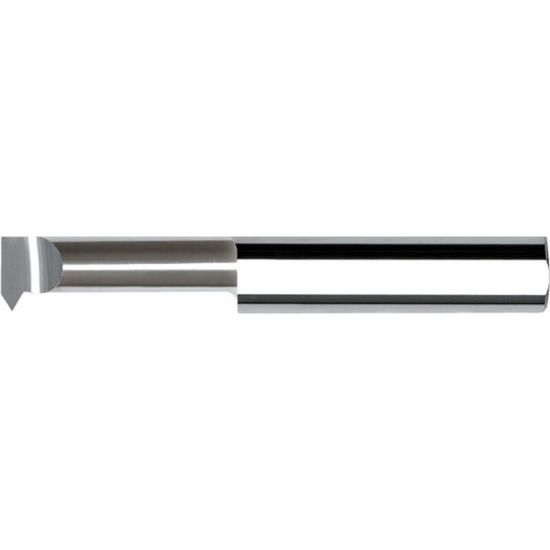

INTERNAL Tool 30-1425-C T-200-600 .200 X .600 Threading Tool

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INTERNAL TOOL
SKU: INT30-1425-C
Delivery date: 3-5 days
$36.41

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application Semi Finishing, Finishing
Application Swiss, Int.Solid Threading
Shipping State California
Made In USA Yes
Full Or Partial Profile Partial Profile
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.6000
Tool Material Carbide
Min Bore 0.2000
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.2500 6.35MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Overall Len 2.5000 63.50MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
