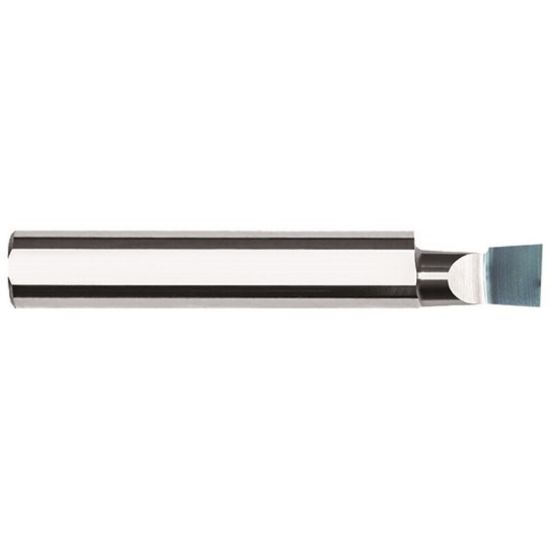

INTERNAL Tool 10-1590-R .490 X 1.250 Boring Tool With Radius

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INTERNAL TOOL
SKU: INT10-1590-R
Delivery date: 3-5 days
$69.67

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Swiss, Int.Solid Turning
Shipping State California
Insert Application Finishing, Semi Finishing
Insert/Tool Tool
Made In USA Yes
Package Size 1
Dimensional Specifications
Machine Side Connection Type Boring Bar
Depth Of Cut Max 1.2500
Min Bore 0.4900
Overall Len 3.0000 76.20MM
Corner Radius 0.0050 0.13MM - 0.0080 0.20MM
Machine Side Connection Size 0.5000 12.70MM
Tool Material Carbide
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
