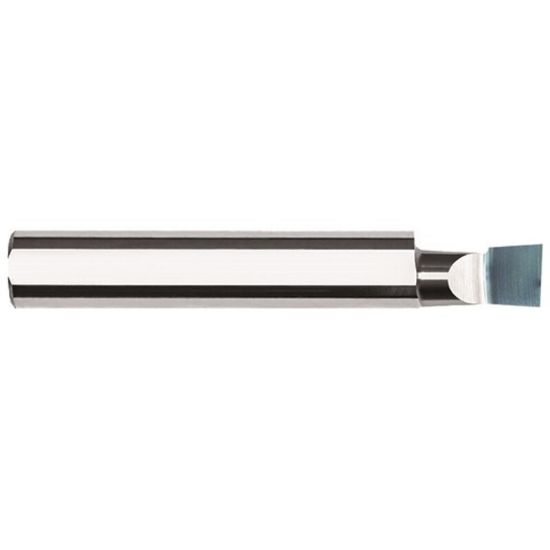

INTERNAL Tool 10-1580 .490 X .750 Boring Tool

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INTERNAL TOOL
SKU: INT10-1580
Delivery date: 3-5 days
$68.11

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing
Application Swiss, Int.Solid Turning
Shipping State California
Package Size 1
Insert/Tool Tool
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
Depth Of Cut Max 0.7500
Machine Side Connection Type Boring Bar
Tool Material Carbide
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Min Bore 0.4900
Overall Len 3.0000 76.20MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
