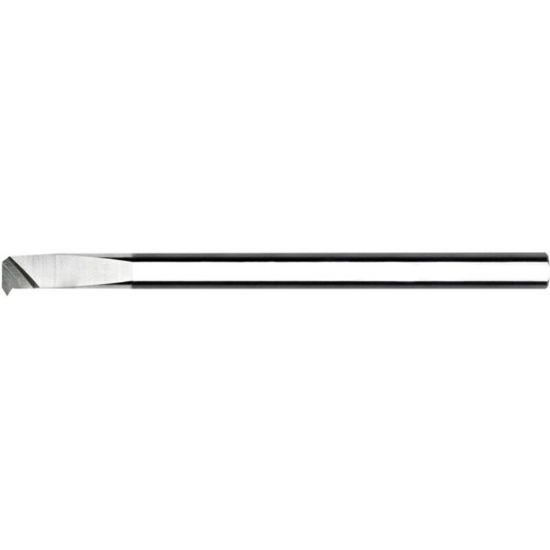

INTERNAL Tool 08-1500 LT-310-4 MULTI-REACH Threading Tool

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INTERNAL TOOL
SKU: INT08-1500
Delivery date: 3-5 days
$64.91

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Full Or Partial Profile Partial Profile
Insert Application Finishing, Semi Finishing
Made In USA Yes
Application Swiss, Int.Solid Threading
Shipping State California
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Min Bore 0.3100
Machine Side Connection Type Boring Bar
Overall Len 4.0000 101.60MM
Thread Pitch Up To 16.00TPI
Tool Material Carbide
Machine Side Connection Size 0.2500 6.35MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
