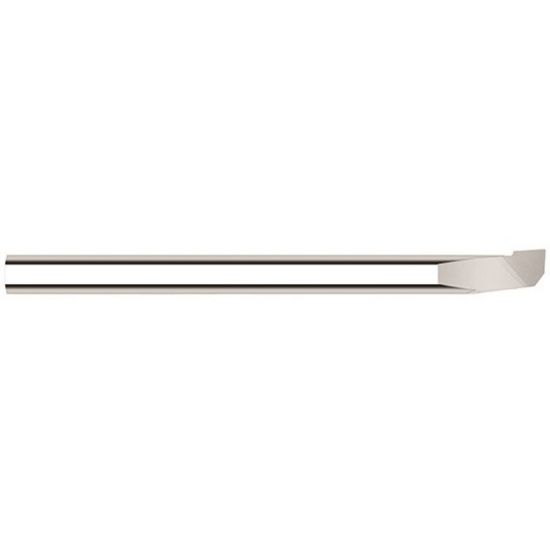

INTERNAL Tool 04-1120-C LB-420-6 MULTI-REACH ALTIN Coated Boring Tool

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INTERNAL TOOL
SKU: INT04-1120-C
Delivery date: 3-5 days
$101.26

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing
Application Int.Solid Turning, Swiss
Shipping State California
Package Size 1
Insert/Tool Tool
Made In USA Yes
Dimensional Specifications
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Tool Material Carbide
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3750 9.53MM
Min Bore 0.4200
Corner Radius 0.0100 0.25MM
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Inter/Extern Internal
Cutting Edge Mat Carbide
