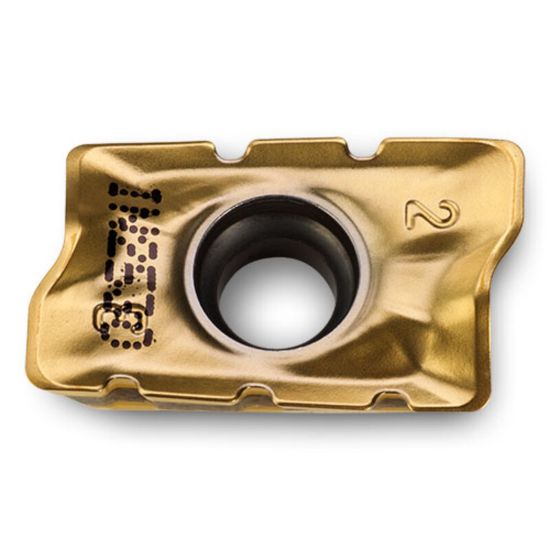

INGERSOLL ZOMT170508R IN2530 Milling Insert Paralelagram 0.031 TiAIN + TiN Hipos

ANSI: ZOMT170508R IN2530

ISO: ZOMT170508R IN2530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5616073
Delivery date: 3-5 days
$18.44

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

TOUGH GRADE FOR STEEL,STAINLESS AND HIGH TEMP

Products specifications
Attribute name Attribute value
General Product Information
Coating TiAIN + TiN
Package Size 10
Grade IN2530
Shipping State Illinois
Insert/Tool Insert
Application Milling Insert
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Dimensional Specifications
Insert Size Ic 17
Corner Radius 0.0310 0.79MM
Cut Rating <40HRC Steel, High Temp, Stainless Steel
Depth Of Cut Max 0.6450
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Cutting Edge Mat Carbide
Insert Style ZO
