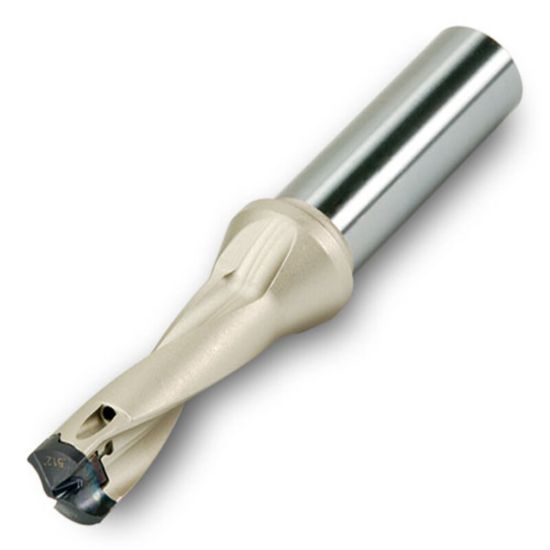

INGERSOLL YD2200066C8R01 0.8661 (22.0 mm) QwikTwist Body

ISO: YD2200066C8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3240403
Delivery date: 3-5 days
$462.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutter Dia 0.8661 22.00MM
Machine Side Connection Type Boring Bar,Weldon
Included Angle 140°
Cut Dia Max 0.9010 22.89MM
Cut Dia Min 0.8661 22.00MM
Flutes/Inserts 2
Flute Length 2.6000 66.04MM
Dia Deep 3.0XD
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
