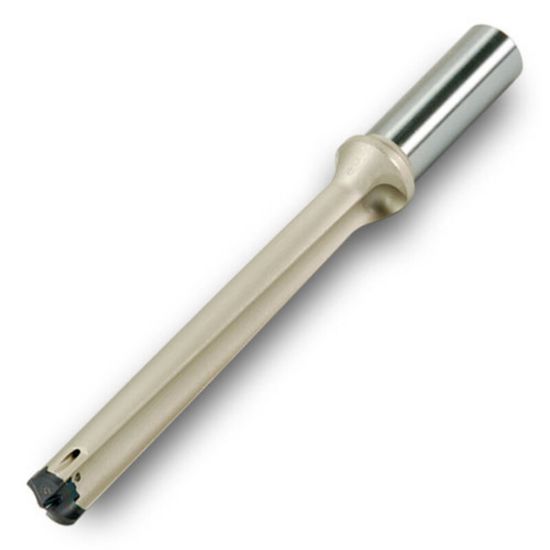

INGERSOLL YD2100168C8R01 0.8268 (21.0 mm) QwikTwist Body

ISO: YD2100168C8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3221208
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling, Single Insert Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 0.8268 21.00MM
Flutes/Inserts 2
Cutter Dia 0.8268 21.00MM
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 8.0XD
Included Angle 140°
Cut Dia Max 0.8620 21.89MM
Flute Length 6.6100 167.89MM
Tool Material Carbide
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
