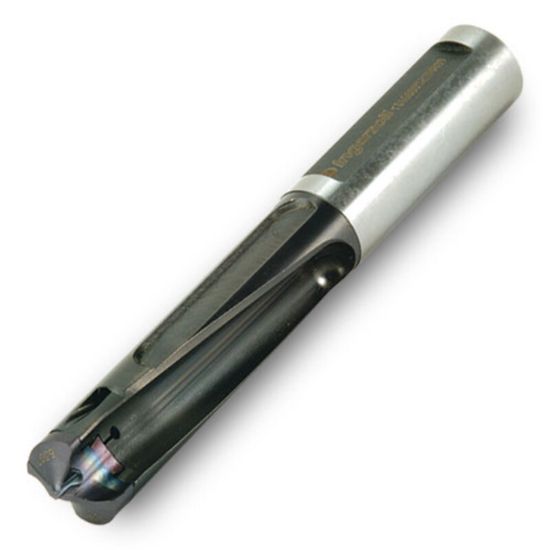

INGERSOLL YD1900062SQR00 .7480-.7835 QwikTwist Body

ISO: YD1900062SQR00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3221125
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.7480 19.00MM
Overall Len 5.3500 135.89MM
Dia Deep 3.5XD
Flute Length 2.4400 61.98MM
Cut Dia Min 0.7480 19.00MM
Shank/Pilot Dia 0.7480 19.00MM
Cutter Dia 0.7480 19.00MM
Flutes/Inserts 2
Included Angle 140°
Cut Dia Max 0.7830 19.89MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
