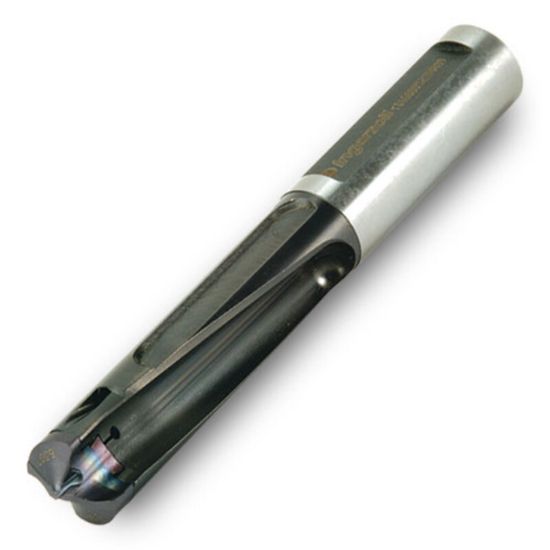

INGERSOLL YD1600052SMR00 .6299-.6654 QwikTwist Body

ISO: YD1600052SMR00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3221122
Delivery date: 3-5 days
$314.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.6299 16.00MM
Overall Len 4.5300 115.06MM
Dia Deep 3.5XD
Cut Dia Max 0.6650 16.89MM
Flute Length 2.0500 52.07MM
Flutes/Inserts 2
Included Angle 140°
Cutter Dia 0.6299 16.00MM
Cut Dia Min 0.6299 16.00MM
Machine Side Connection Size 0.6299 16.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
