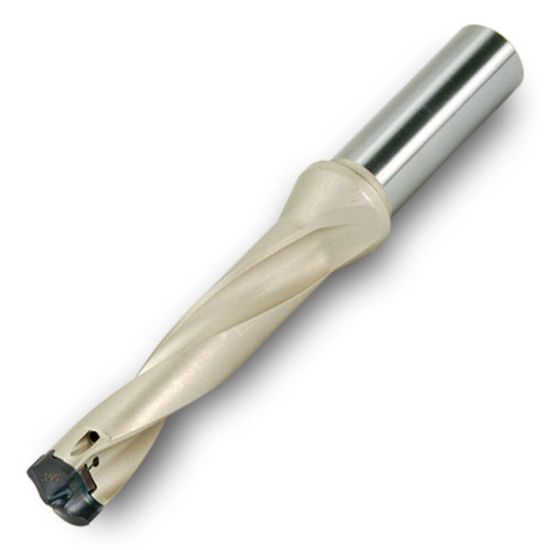

INGERSOLL YD150007518R01 0.5906 (15.0 mm) QwikTwist Body

ISO: YD150007518R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3208911
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Drilling, Single Insert Drilling
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cutter Dia 0.5906 15.00MM
Cut Dia Min 0.5906 15.00MM
Flutes/Inserts 2
Included Angle 140°
Dia Deep 5.0XD
Tool Material Carbide
Flute Length 2.9500 74.93MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cut Dia Max 0.6260 15.90MM
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Boring Bar,Weldon
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
