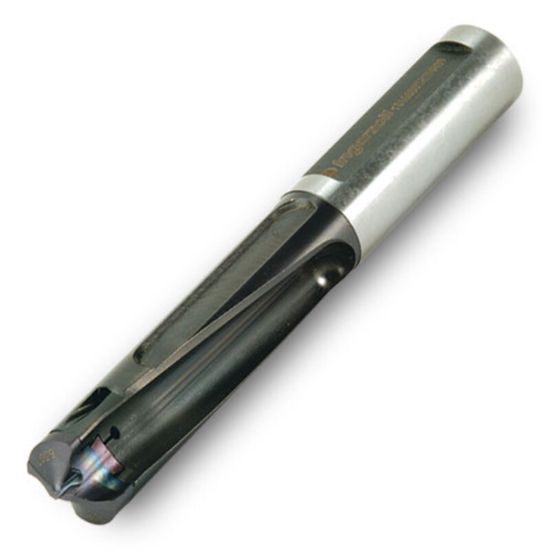

INGERSOLL YD1500052SLR00 .5906-.6260 QwikTwist Body

ISO: YD1500052SLR00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3221121
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Single Insert Drilling, Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.9063 23.02MM - 29/32
Flute Length 2.0500 52.07MM
Cut Dia Max 0.9410 23.90MM
Flutes/Inserts 2
Included Angle 140°
Dia Deep 3.5XD
Cut Dia Min 0.9062 23.02MM - 29/32
Shank/Pilot Dia 0.5906 15.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.5906 15.00MM
Overall Len 4.2600 108.20MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
