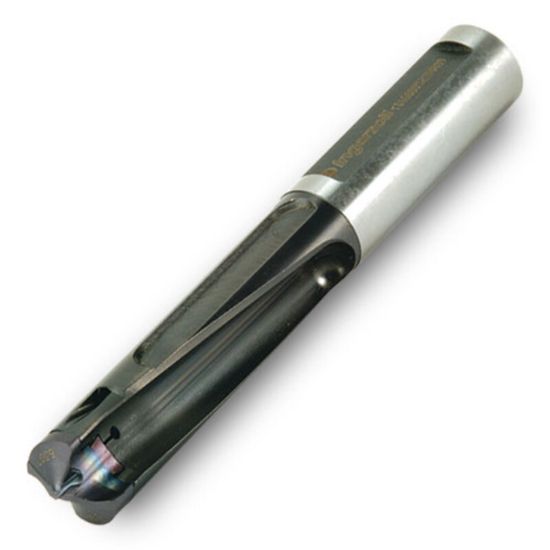

INGERSOLL YD1300042SJR00 .5118-.5276 QwikTwist Body

ISO: YD1300042SJR00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3221117
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Dia Deep 3.5XD
Flutes/Inserts 2
Flute Length 1.6500 41.91MM
Included Angle 140°
Cutter Dia 0.5118 13.00MM
Shank/Pilot Dia 0.5118 13.00MM
Cut Dia Max 0.5470 13.89MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cut Dia Min 0.5118 13.00MM
Machine Side Connection Size 0.5118 13.00MM
Overall Len 3.9200 99.57MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
