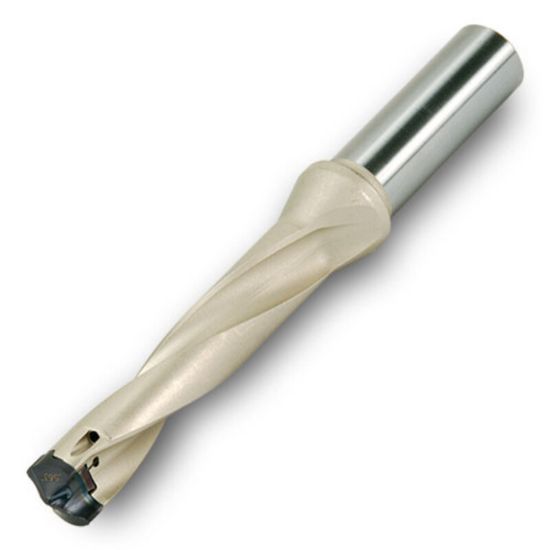

INGERSOLL YD1200060C0R01 0.4724 (12.0 mm) QwikTwist Body

ISO: YD1200060C0R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3208901
Delivery date: 3-5 days
$314.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Package Size 1
Shipping State Illinois
Made In USA No
Dimensional Specifications
Cutter Dia 0.4724 12.00MM
Cut Dia Max 0.4880 12.40MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Dia Deep 5.0XD
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 0.6250 15.88MM
Flutes/Inserts 2
Flute Length 2.3600 59.94MM
Included Angle 140°
Cut Dia Min 0.4724 12.00MM
Tool Material Carbide
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
