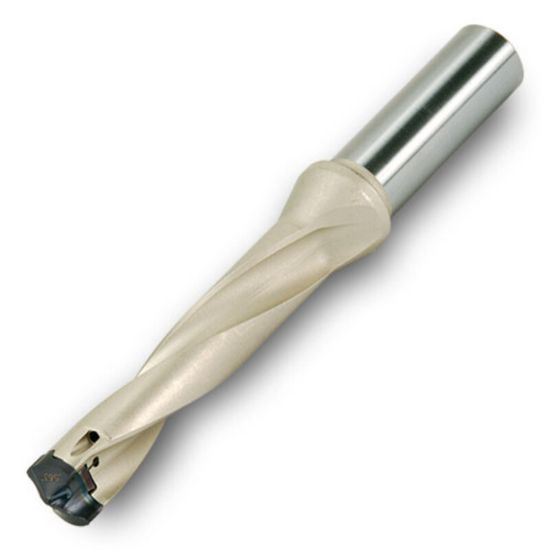

INGERSOLL YD1150057C0R01 0.4528 (11.5 mm) QwikTwist Body

ISO: YD1150057C0R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3208470
Delivery date: 3-5 days
$314.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling, Single Insert Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.4528 11.50MM
Cut Dia Max 0.4690 11.91MM
Cut Dia Min 0.4528 11.50MM
Machine Side Connection Type Boring Bar,Weldon
Flutes/Inserts 2
Included Angle 140°
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Dia Deep 5.0XD
Flute Length 2.2600 57.40MM
Tool Material Carbide
Machine Side Connection Size 0.6250 15.88MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
