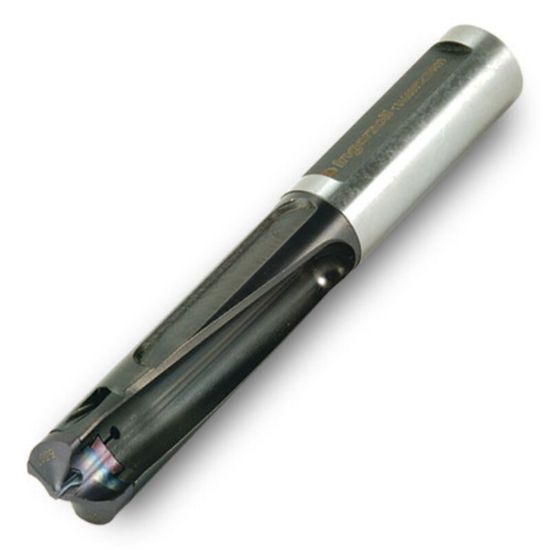

INGERSOLL YD1150038SHR00 .4528-.4685 QwikTwist Body

ISO: YD1150038SHR00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3221114
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.4724 12.00MM
Cutter Dia 0.4528 11.50MM
Machine Side Connection Size 0.4724 12.00MM
Overall Len 3.6100 91.69MM
Flutes/Inserts 2
Cut Dia Max 0.4690 11.91MM
Flute Length 1.5000 38.10MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 140°
Cut Dia Min 0.4528 11.50MM
Dia Deep 3.5XD
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
