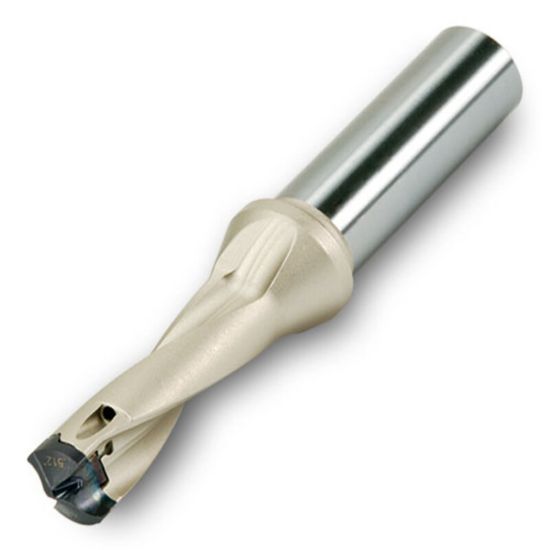

INGERSOLL YD1050031C0R01 0.4134 (10.5 mm) QwikTwist Body

ISO: YD1050031C0R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3208465
Delivery date: 3-5 days
$266.93

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Dia Min 0.4133 10.50MM - Z
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flute Length 1.2400 31.50MM
Included Angle 140°
Machine Side Connection Type Boring Bar,Weldon
Cutter Dia 0.4133 10.50MM - Z
Dia Deep 3.0XD
Flutes/Inserts 2
Machine Side Connection Size 0.6250 15.88MM
Cut Dia Max 0.4290 10.90MM
Tool Material Carbide
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
